Multifunction candy depositing line HTL-T150/T300/T450/T600
Multifunction candy depositing line HTL-T150/T300/T450/T600
Description:
The production line is a full-automatic hard candy pouring production line independently developed and produced by haitel, which can meet the needs of multiple shapes and colors. The machine adopts continuous pouring, automatic demoulding, fan forced cooling and other devices as an integrated automatic hard candy pouring machine. It can also produce high-quality hard candy and lollipops with multiple shapes and colors by changing molds or pouring heads. Good stability, ensure the quality and output of candy in the long-term production process, and save manpower, so as to reduce the production cost.
Main performance and structural features:
1.PLC /computer process control available;

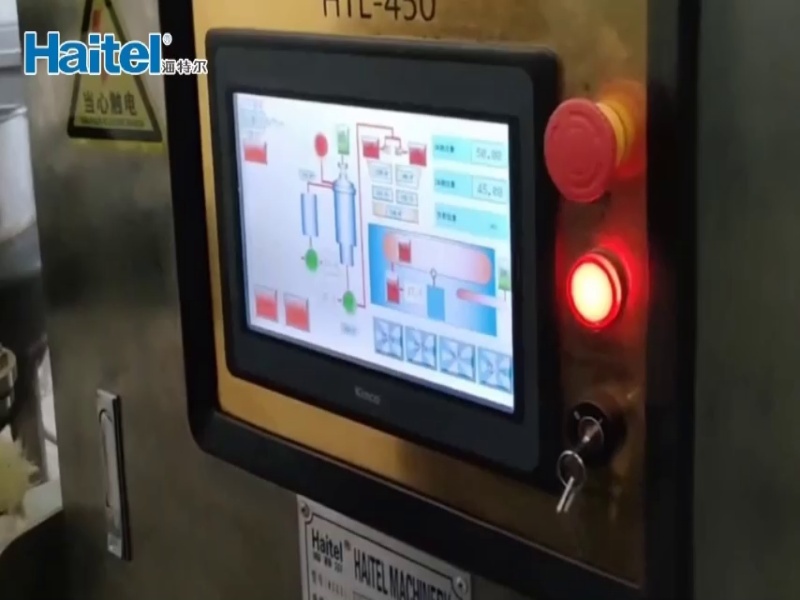

2.An LED touch panel for easy operating;
3.The production capacity is 150,300,450,600kgs/h or more;
4.The contacting food parts are made of hygienic Stainless Steel SUS304;
5.Optional (mass) flowing controlled by Frequency inverters;
6.In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid;
7.Dosing pumps for the automatic injection of colors, flavors and acids;
8.One set of extra jam paste injection system for making fruit jam-center filled candies（optional）;
9.Use automatic steam control system instead of the manual steam valve which control a stable steam pressure supplying to the cooking;
10.Moulds can be made according to the candies samples provided by the customer.
technological process:
Sugar melting → sugar storage → sugar boiling → pouring molding → cooling → demoulding → packaging
Application scope:
It is suitable for pouring different shapes of hard candy and lollipop.
|
Mode |
production capacity |
power |
compressed air |
Overall dimension |
weight |
|
HTL-T150 |
150(Kg/h) |
8kw |
0.2(m3/m) |
8500*1100*1800mm |
3000kg |
|
HTL-T300 |
300(Kg/h) |
12kw |
0.25(m3/m) |
10000*1600*1800mm |
3500kg |
|
HTL-T450 |
450(Kg/h) |
16kw |
0.4(m3/m) |
10000*2200*1800mm |
4200kg |
|
HTL-T600 |
600(Kg/h) |
20kw |
0.45(m3/m) |
10000*2600*1800mm |
5000kg |
Pre-sale
1.Confirm machine type: Negotiate with clients to seclect the correct machine according to customers’ requirment.
2.Quote and Sign firm contract: After confirm with customers with all details, such as payment terms, model, delivery time, send official quotation to clients.
After-sale
1.When equipments arrive in clients factory,send engineers there for installation and ensure customers know how to operate the machine.
2.In order to improve our products,we keep in close contact with customers to know their feedbacks and suggestions.
3.From the date of the buyer receive the machines, free warrant for 12 months.
Packaging and Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Quality Guarantee
The quality of the production line will have 12 month warranty since the installtion in the buyer's factory.
• Top Food machine manufacturer in China
• 20000 square meters production plants
• Over 22 years of experience
• Made-in-China’s Gold member since 2009
• CE, ISO9001 certified
• Engineers able to offer overseas installation and testing, and training.The plant layout design, assembling, installation and debugging, start-up and local team training will be FREE at no cost.
• Prompt delivery and flexible payment terms
• Small order is welcomed
• professinal team with strong technical and R&D knowledge to develop advanced food equipments
• save labor cost and improve the capacity.
